Freudenthal Manufacturing

PolyDome Foot Bath

Polydome Foot Baths Helps Prevent Hoof-Rot and Heel Erosion-Reduces Lameness. A disinfectant solution (copper sulfate mixed with water) used in the footbath will kill or inhibit bacterial infections such as foot-rot and heel erosion. It penetrates up between toes and cracks, where bacteria inflames the soft skin, and then under the horn lining and inner surfaces of each cleat.

By locating the PolyDome Footbath at the exit door of your stall barn, or in the exit lane of the milking parlor, cows walk through it twice a day.

The disinfectant solution hardens the horn and toughens the skin in vital areas between cleats of the hoof. This drying effect on hoof and skin makes cattle’s feet more resistant to bacterial infection.

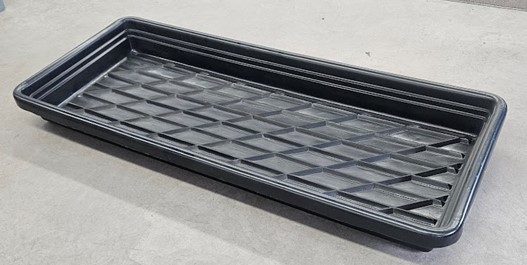

Self-supporting foot bath (No frame required)

Foot Bath insert (Wood frame not included)

A quick and easy way to clean and disinfect cattle’s feet
Fill with disinfectant to help prevent foot rot and heal erosion
Washing action of footbath removes damaging material from hooves–helps to prevent buildup of dirt and manure in the space between cleats, where harmful bacteria tends to harbor
The self-supporting style has a contoured interior with extra deep segments which enables the hooves to open wide which facilitates the penetration of treatment products
Thick-Walled, one-piece, medium density polyethylene WILL NEVER ROT or RUST

Standard Features

Polyethylene will never rot or rust
Thick-Walled, one piece construction
Nonskid bottom
Two sizes available in self-supporting design–no need for wood framing
Available in 4 sizes to be supported by wood frame (not included)

Easy Installation

Locate PolyDome Footbath where cows exit the parlor or barn
Exit area must be firm and dry

Sizes Available

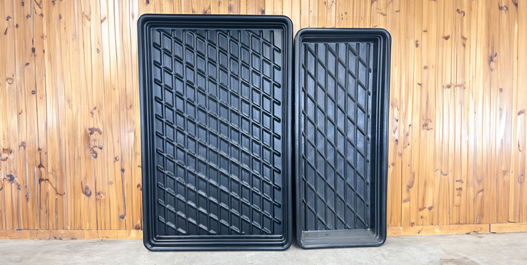

Self-supporting Foot Baths

36" x 76" x 6" Deep Self-supporting and contoured interior
54" x 84" x 6" Deep Self-supporting and contoured interior.

Foot Bath Insert (Wood frame not included)

36" x 36" x 7-1/2" Deep Must be supported by 2" x 8" wood frame.
36" x 48" x 5-1/2" Deep Must be supported by 2" x 6" wood frame
36" x 72" x 3-1/2" Deep Must be supported by 2" x 4" wood frame.
36" x 72" x 5-1/2" Deep Must be supported by 2" x 6" wood frame.
