Channel Iron Bracket Freestalls

HEAVY DUTY FREESTALLS WITH CHANNEL IRON BRACKETS

Freudenthal Channel Iron Bracket Freestalls

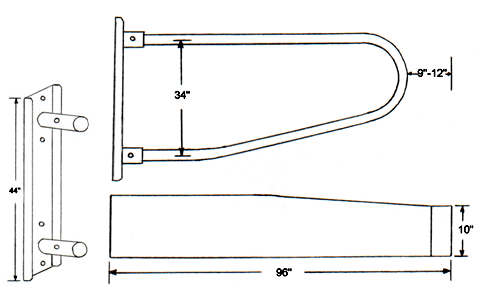

Freudenthal Channel Iron Mount Freestalls feature a Heavy Duty 4" wide x 40" long Bracket with weld on sleeves. Bracket weighs 23 lbs. Our Freestalls are constructed of 2 3/8" O.D. 10 gauge HI Tensil Strength Galvanized Steel with 1.9" Top Rail Pipe for additional strength. Our 6 1/2 lb Top Rail Clamp is a full 1/4" thick with four 1/2" grade (5) bolts with self-locking nuts. This Freestall and Bracket system is incomparable in quality and durability.

8'0" x 2 3/8" Freestall with 48" of top rail and all clamps
7'6" x 2 3/8" Freestall with 48" of top rail and all clamps
7’0” x 2 3/8” Freestall with 48" of top rail and all clamps
6'6" x 2 3/8" Freestall with 48" of top rail and all clamps
6'0" x 2 3/8" Freestall with 48" of top rail and all clamps
5'6" x 2 3/8" Freestall with 48" of top rail and all clamps

Order Separately

#2026-1.9 Wall Flange Clamp
Additional Top Rail Pipe per ft
