Weld On Sleeve Mount Bracket Freestalls

HEAVY DUTY FREESTALLS WITH WELD ON SLEEVE MOUNT SYSTEM

Freudenthal Universal Mounting Bracket Freestalls


Freudenthal offers a Weld on Sleeve Mount System that adapts well if your Dairy Facility requires Horizontal 4" Channel or Rectangular Tubing. We use (2) 2 7/8" O.D. Sleeves with 1/2" grade 8 Bolts that are Welded onto your Horizontal Mount System. Our Freestalls are constructed of 2 3/8" O.D. 10 gauge high tensil strength galvanized steel, with 1.9" - 9 gauge top rail for additional strength. Our 6 1/2 lb. top rail clamp is a full 1/4" thick with four 1/2" grade 5 bolts with self locking nuts. This entire stall system was engineered with longevity in mind.

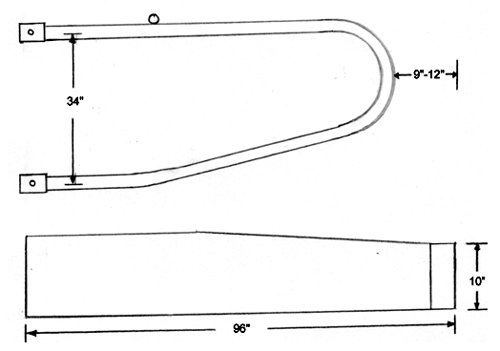

8'0" x 2 3/8" Freestall with 48" of top rail and all clamps
7'6" x 2 3/8" Freestall with 48" of top rail and all clamps
7’0” x 2 3/8” Freestall with 48" of top rail and all clamps
6'6" x 2 3/8" Freestall with 48" of top rail and all clamps
6'0" x 2 3/8" Freestall with 48" of top rail and all clamps
5'6" x 2 3/8" Freestall with 48" of top rail and all clamps

Order Separately

#2026-1.9 Wall Flange Clamp
Additional Top Rail Pipe
