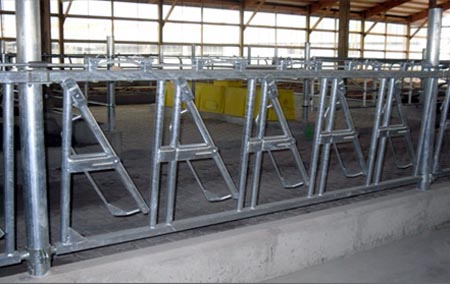

Freudenthal Manufacturing Auto Release Self Locking Panel is the heaviest built in the Dairy Industry. It boasts 2" x 2" heavy duty 10 gauge square tubing on top and bottom rails. All round pipes are 10 gauge and the swing arm is heavy duty 6 gauge with hardened bushings inserted and 1/2" grade 8 bolts. After welding and fabrication, the entire panel is hot dipped galvanized, both inside and out guaranteeing long product life. The pivot arm has a hardened bushing and 7/16” grade 8 bolt ensuring low maintenance and is also counter-weighted for automatic return. Our Auto Release Self Locking Panel can be face mounted or comfort tilt mounted to any size post. Freudenthal Manufacturing Auto Release Self Locking Panel is unmatched by any of our competitors. We invite you to check it out to see for yourself.

Features of Auto Release Self Locking Panel:

• Entire Panel made of Heavy Duty 10 gauge Tubing
• Heavy Duty 6 gauge Swing Arms with Hardened Bushings Inserted and 7/16" grade 8 bolts
• Stiffener Brackets welded at each Head Location to gurantee Rigidity and Eliminate Breakage
• Panels are Hot Dipped Galvanized after Welding Inside and Out
• Wide 17" Opening for Easy Cow Access
• Allows you to Lock in One or more Animals and Release the Rest
• Natural Cushion on Pivot Arm for Noise Reduction
• No Latch Movement in Open Position
• Available in 6'0" - 8'0" - 10'0" - 12'0" Lengths
• 12'0" Panels Weigh 275 lbs
• Heifer Panels are also available
